Features
- Body – Polypropylene for resistance to acids and other chemicals.
- Maximum working pressure 785kPa
- Minimum working pressure on pressurized systems must be 98kPa.

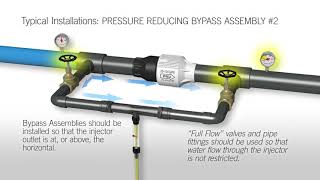

- When using on bypass pressure differential between the inlet and outlet must be at least 70kPa.
- Venturi should always be installed on a level plain.
Suction Line Kits Without Injectors
| Model Number | Compatible Injectors | Parts Included | Weight (lbs) | Weight (kg) |
| K-184 | 0.5″ (15mm) and 0.75″ injectors | (10′ coiled) and (2″ piece) Clear Vinyl Tubing (1) MV-25A Metering Valve (2) CLAMPS#23 (1) S-25HB Strainer |
0.45 lbs | 0.20 kg |
| K-183 | 1″ and 1.5″ injectors | (10′ coiled) and (2″ piece) Clear Vinyl Tubing (1) MV5-PP Metering Valve (4) CLAMPS#44 (1) S-50HB Strainer (2) TA-550F Tubing Adapters |
1.60 lbs | 0.73 kg |
| KR-183 | 1″ and 1.5″ injectors | (6′ coiled) and (2″ piece) Clear Vinyl Tubing (1) 0.5″ PVC Ball Valve (4) CLAMPS#44 (1) S-50HB Strainer (2) TA-550 Tubing Adapters |
1.05 lbs | 0.48 kg |
| K-282 | 2″ injectors | (1) 1″ PVC Ball Valve (2) #16 Stainless Steel Clamps (1) S-87 Strainer (1) C-86 CLEAR Check Valve Misc. PVC Fittings |
5.15 lbs | 2.34 kg |
