Features
- Pressure Rating:Â 16 Bar, 232 PSI
- Temperature Rating: 55°C
- Flow Rate:Â 450 L/hr to 40,000 L/hr
- Connection Type:Â Male BSP thread to male BSP thread

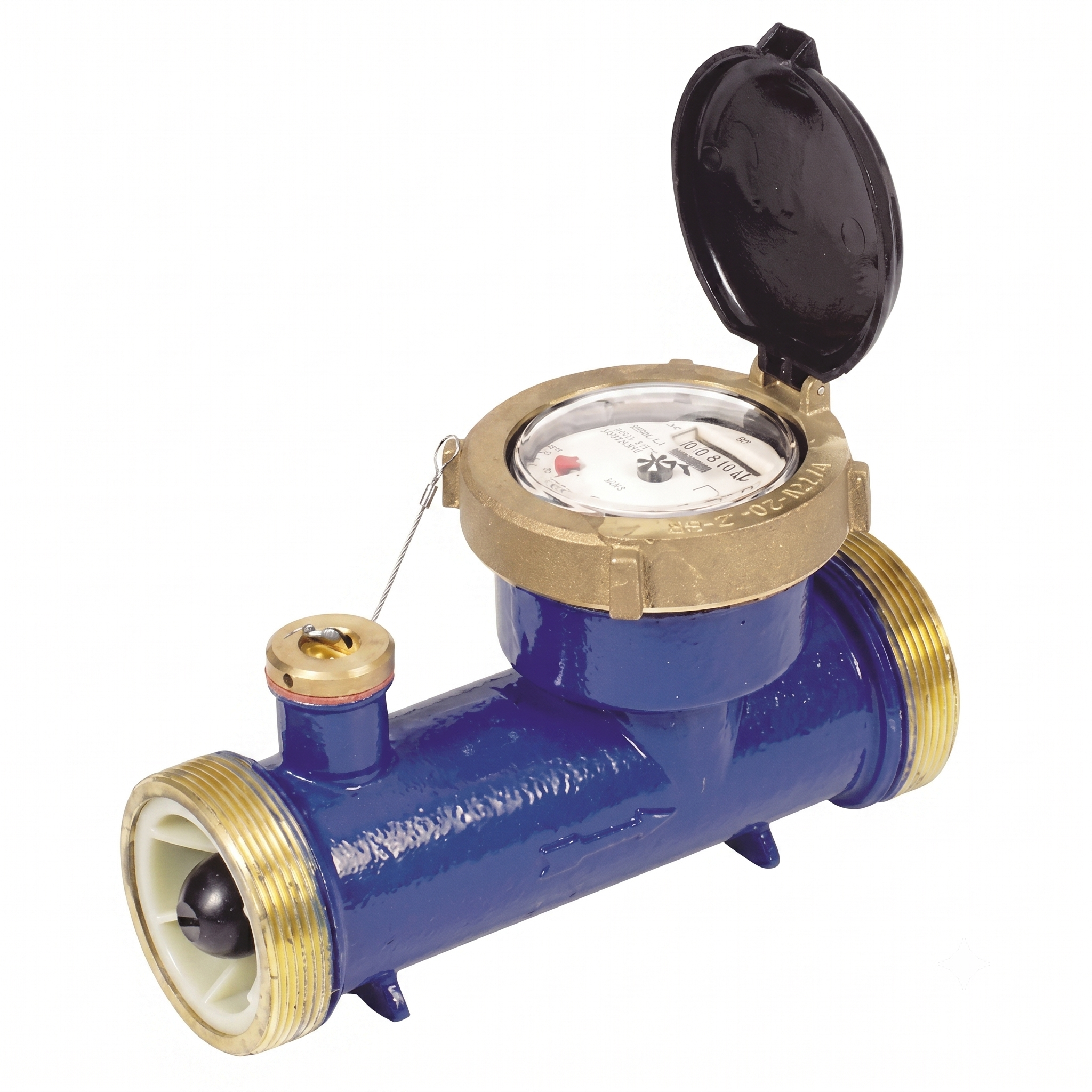

Arad WMR 50mm (2 inch) flow meter with EV output of 1 pulse per 10 litres
- Body: Iron, polyester coated
- Applications:Â Stockwater, main supply lines, agriculture and industry
The Arad 50mm WMR is an extremely versatile meter capable of accurately measuring flows to 40,000 Litres per hour
High pressure rating of 16 bar (232 PSI)
The meter can be installed horizontally, vertically with an upwards flow or at any angle from horizontal to vertical
The ample space around the core of the in-line helical axial turbine allows foreign matter to pass through the meter reducing the chances of clogging
Supplied with a pulse output of 1 pulse per 10 Litres and complete with brass unions.
More features
- Minimum head loss
- High accuracy
- Hermetically sealed register with glass lens
- Not sensitive to dirt
Installation requirements
- The water meter may be installed in any position. For non-horizontal position the flow must be upwards
- The meter must be full of water while operating
- Prior to installation of a meter, the pipeline must be thoroughly flushed
- Must have a straight length of pipe upstream of the meter, about 10x the length of the water meters diameter (50mm meter will require 500mm of straight pipe)
- Must also have a straight length of pipe downstream of the meter, about 5x the length of the water meters diameter (50mm meter will require 250mm of straight pipe)
