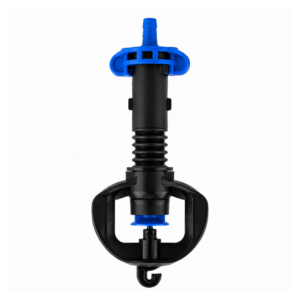

Netafim – VibroNet SD Sprinkler

Features and Benefits

■ Excellent uniformity distribution as a single emitter.

■ Operation of this emitter is based on vibration. Water passage through the nozzle causes needle vibration which in turn breaks up the water jet into uniform droplets that are evenly spread.

■ Large drops suitable for open field conditions. No mist / wind-borne small drops.

■ Relatively small wetting diameter, suits especially densely planted fruit tree crops.

■ Constantly self-cleaning, the vibrating system does not allow for build up of mineral deposits in the nozzle.

■ Micro-emitter made of plastic materials resistant to all agrochemicals & weather conditions.

Specifications

■ Bridgeless micro emitter with vibrating action.

■ Micro-emitter, 3 different flow rates: 30, 50, 70 l/h.

■ Nominal flow rates at 1.5 bar pressure.

■ Inlet connector: press fit.

■ Recommended working pressure: 1.0 – 2.0 bar.

■ Recommended filtration: 130 micron / 120 mesh.

Filtration method is to be selected based on the kind and concentration of the dirt particles existing in the water.
Wherever sand exceeding 2 ppm exists in the water, a Hydrocyclon filter is to be installed before the main filter.
When sand / silt / clay solids exceed 100ppm, pre treatment will be applied according to Netafim™ expert team’s
instructions.
