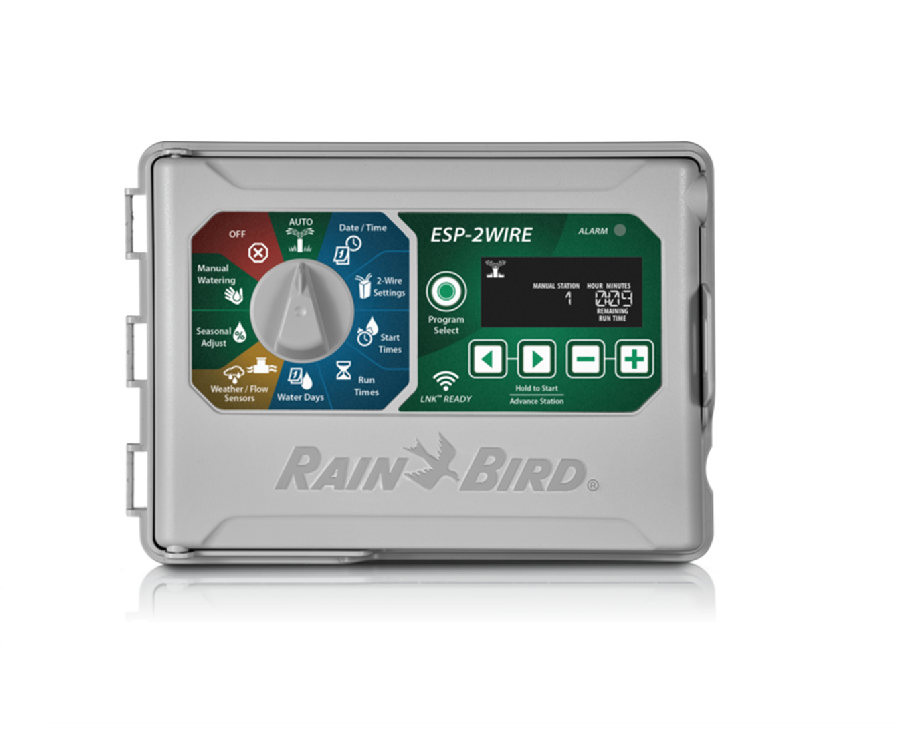

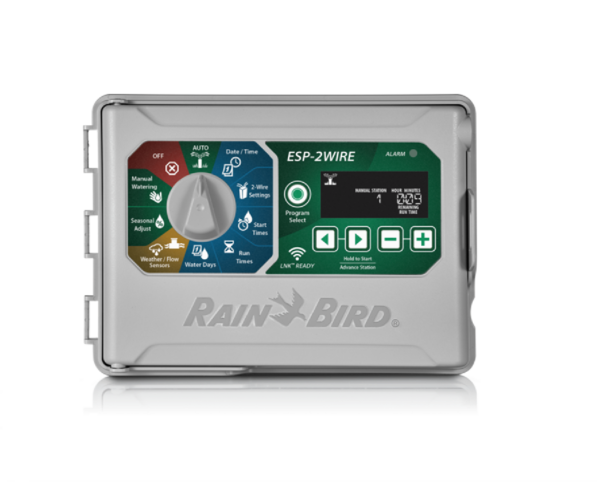

Rainbird ESP-2WIRE Controller
Price range: $210.44 through $983.97

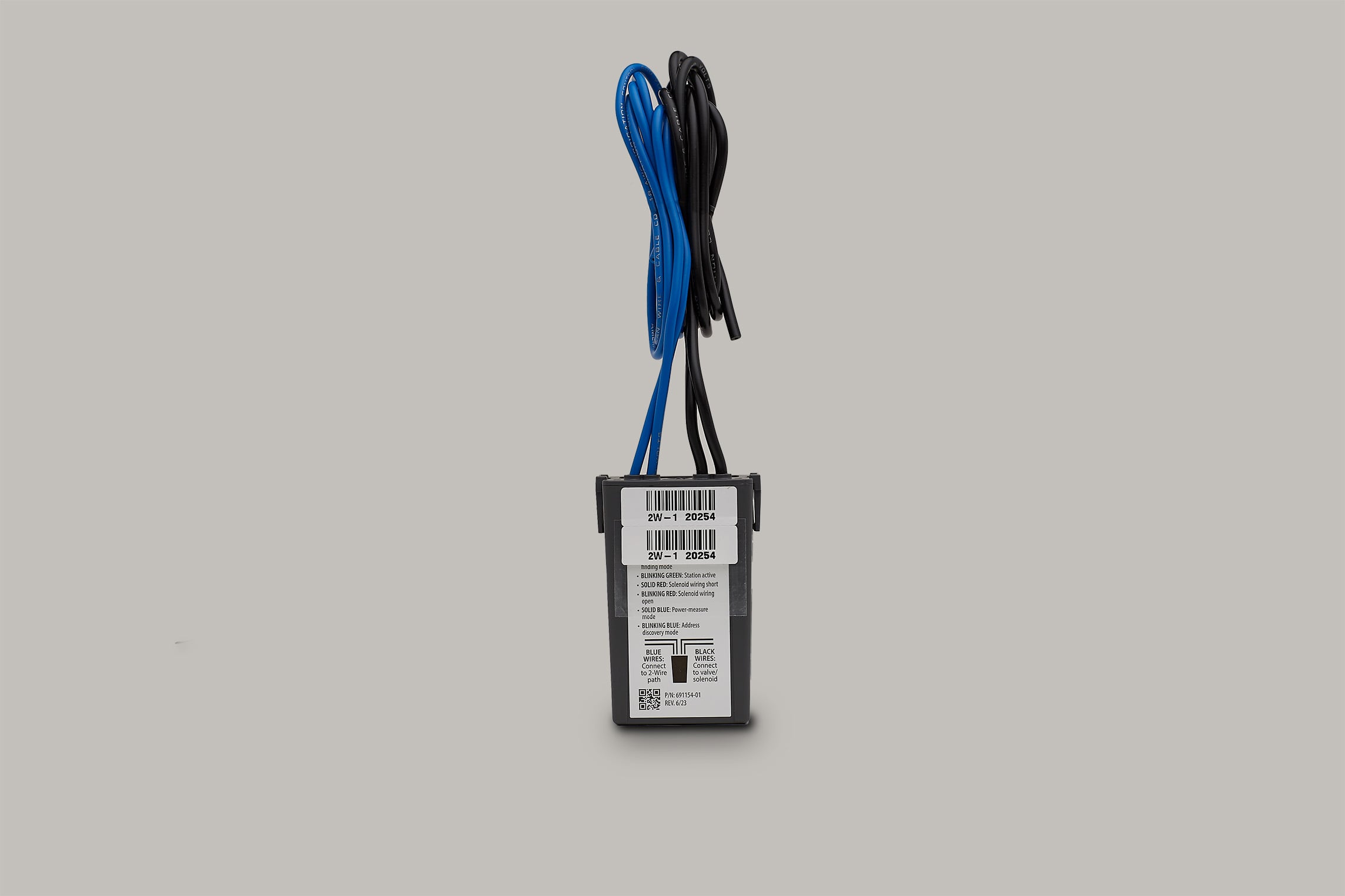

The ESP-2WIRE Controller and 2W-1 Decoder continue Rain Bird’s legacy of the best-in-class 2-wire experience with an approachable platform for projects up to 50 stations.
With new Decoder Auto-Address functionality all decoders connected to the 2-wire path are found and assigned to stations providing significant time savings. After decoders are programmed, the ESP-2WIRE Controller programs just like the popular ESP-ME3 Controller.
Details
Code
Price
Quantity
SKU: ESP2WIRE
Features
- 50-Station capacity standard without the need for expansion modules
- Compatible with standard direct burial irrigation wire and standard irrigation wire connectors
- Decoder Auto-Address to detect and assign decoder addresses to stations automatically
- Supports up to two 2-wire paths

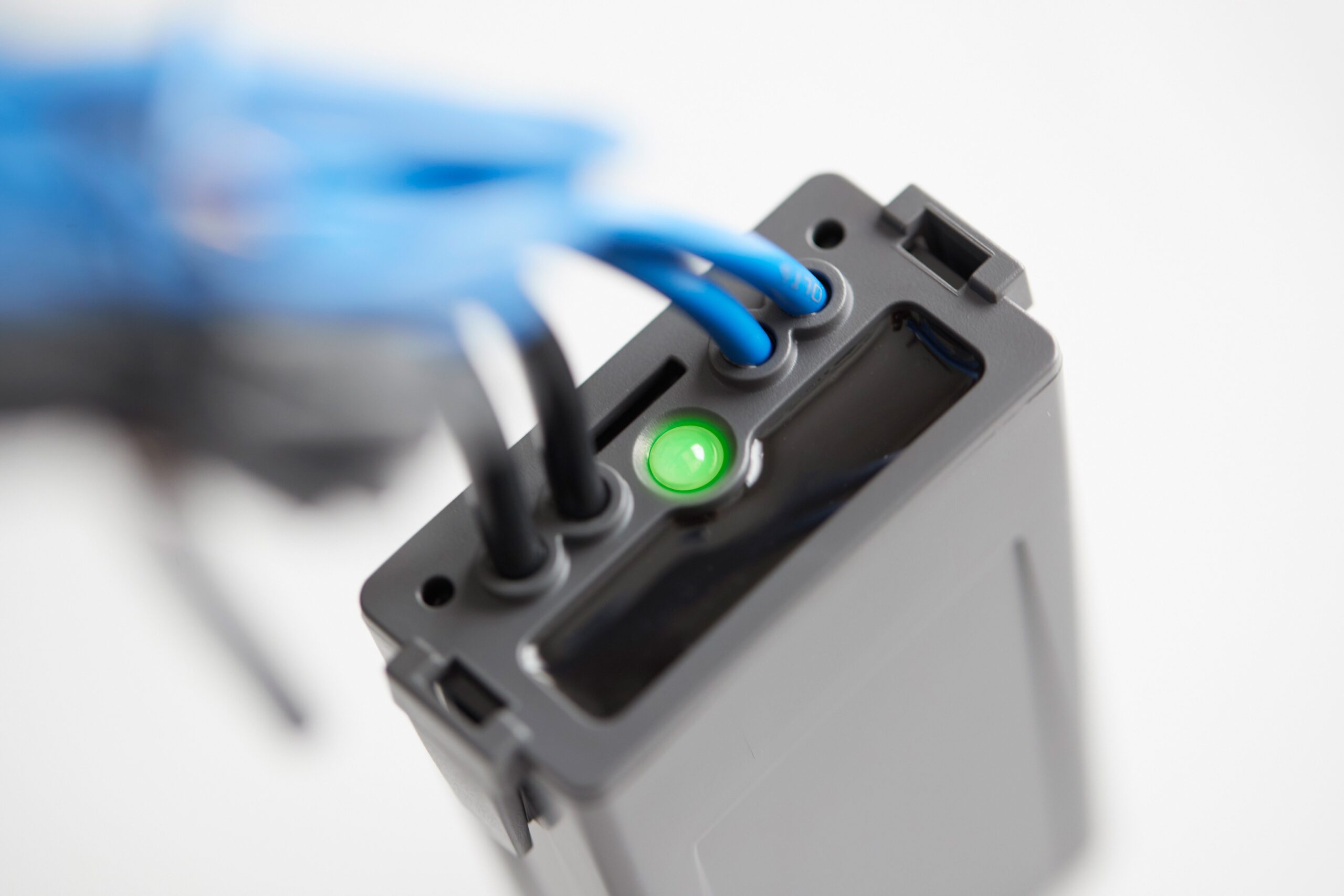

- Diagnostic LEDs on the back plane and on each 2W-1 Decoder for advanced troubleshooting
- 4 available programs with up to 6 start times for each program to meet the needs of varied landscapes
- One-touch manual watering capability for ease of use

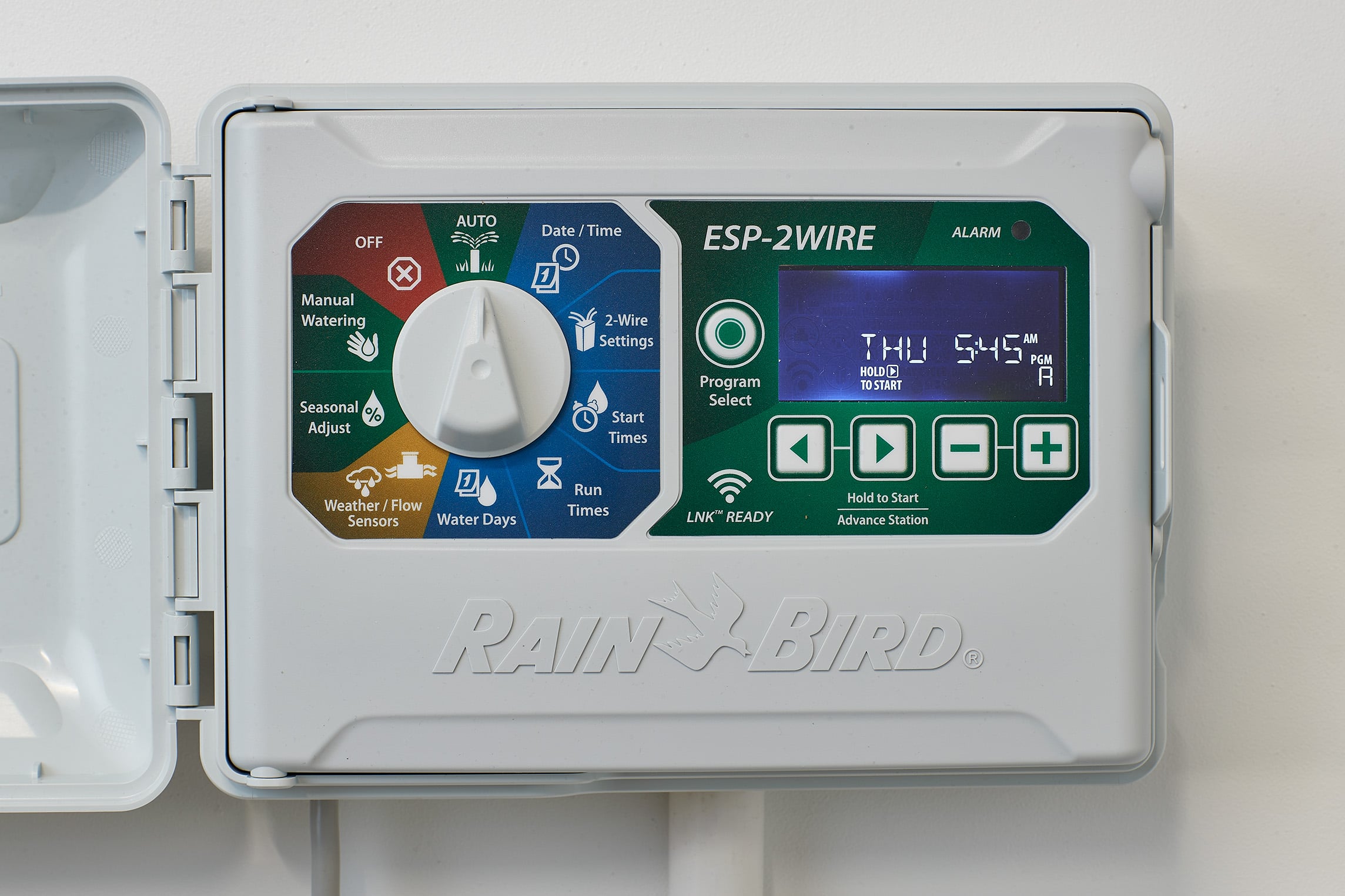

- Large back-lit LCD display for improved visibility in low-light and direct sun conditions
- Contractor Default™ allows you to easily save and restore your custom schedule
- Delay Watering up to 14 days and automatically resume watering after the set delay has elapsed
- Bypass Rain Sensor for any station gives you the ability to customize which stations react to a rain sensor
- Seasonal Adjust by program allows you to easily reduce or increase watering by program
- Upgradeable for WiFi-based remote monitoring and control via iOS and Android mobile devices (with LNK2 WiFi Module sold separately)
- Internet-based weather information can be used to make daily adjustments to the irrigation schedule, saving up to 30% in water (with LNK2 WiFi Module sold separately)
- Set Permanent Days Off per program to ensure watering never occurs on days when maintenance crews are on site (for Odd/Even/ Cyclic schedules)

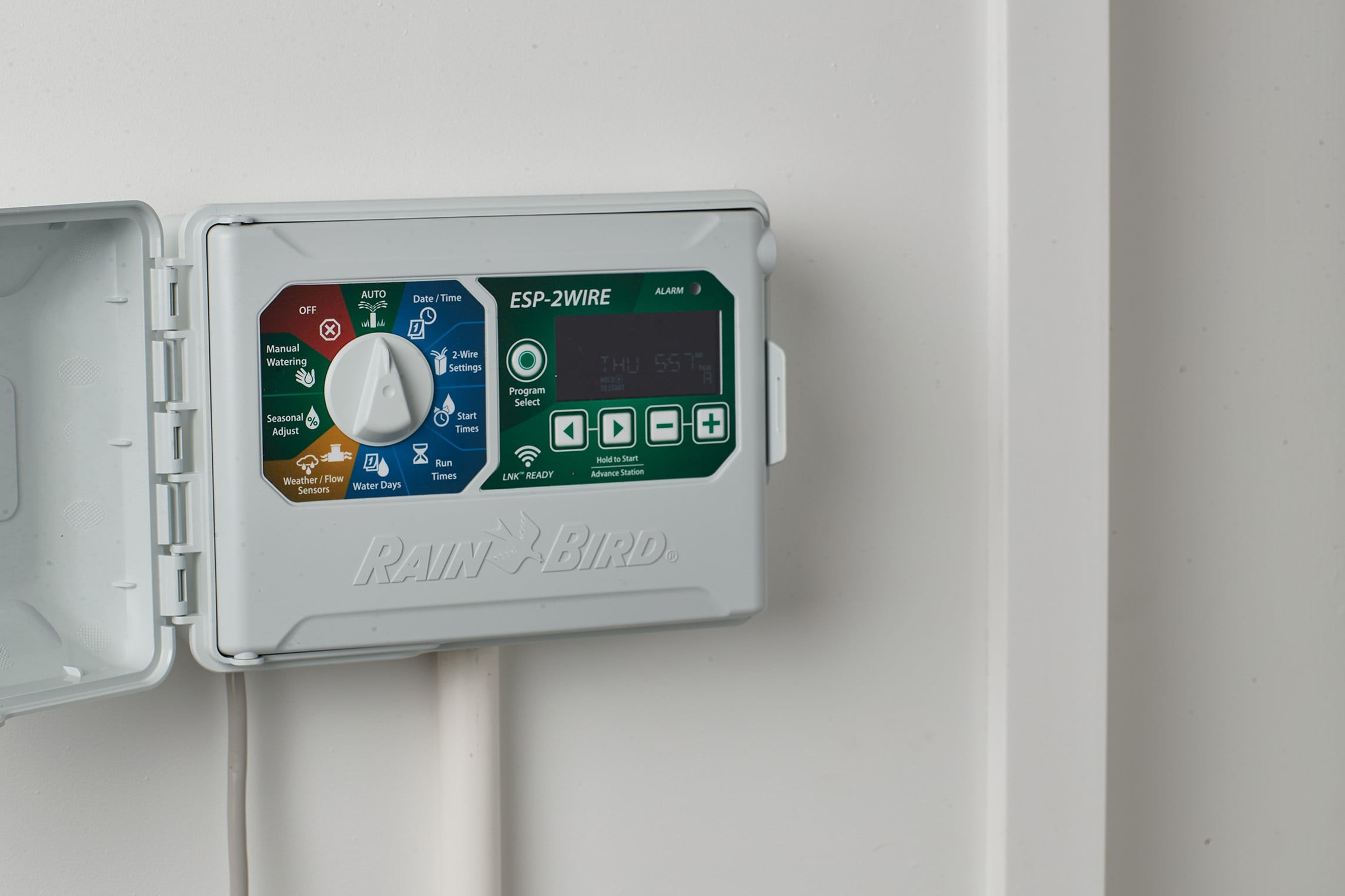

- Easy to install indoors or outdoors with pre-installed power cord
Specs
- Operating Specifications
-
Operating Temperature: Up to 149°F (65°C)
Electrical Specifications
- Input required: 120VAC (+/- 10%), 60Hz, (International models: 230VAC (+/- 10%), 50Hz)
- Output: 1.0A at 25.5VAC
- Master Valve/Pump Start Relay
- External battery back-up not required. Nonvolatile memory permanently saves the current programming and a 10 year life lithium battery maintains the controllers time and date during power outages.
Certifications
- 230V Model: CE, UKCA, RCM, IRAM, CMIM, NRCS, ECAS
- IPX4
WaterSense certified with up to 30% water savings when installed with Rain Bird LNK2 WiFi Module and WR2 Rain Sensor
Dimensions
- Width: 10.7 in. (27.2 cm)
- Height: 7.7 in. (19.5 cm)
- Depth: 4.4 in. (11.2 cm)
