Rain Bird 702/752 Series Golf Rotor

Features

Peace of Mind Today. Continuous Innovation for the Future.

Top Serviceability

• Pressure regulation and arc adjustments can be made from the top of the rotor, requiring only a standard screwdriver.
• Quick nozzle changes can be completed in the field in just seconds.
• Servicing Internal components can be quickly accessed from the top of the rotor.

Unrivalled Efficiency

• The 702 Series offers reliable full-circle coverage, while the 752 Series delivers ultimate full-circle/part-circle versatility and easy arc adjustments.
• Self-adjusting stator automatically modifies flow after nozzle changes, saving your crew time.
• Choose between electric and Integrated Control (IC) models.

Lasting Performance

• A GBS25 solenoid delivers unrivalled 25kV surge protection and built-in filtration for an extra level of defence from debris.
• Every model has been exhaustively tested and held to the highest standards in the industry.

Overview

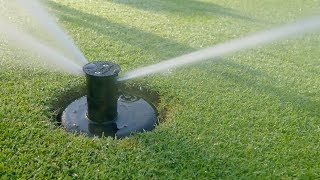

The NEW Rain Bird 702/752 Series Rotors offer unmatched flexibility, industry-leading uniformity and a consistent rotation speed; the full-circle 702 Series and full/part-circle 752 Series make it easier to maintain flawless turf. Turn-of-a-screw adjustments and top serviceability save you time and labour costs season after season.

75% Faster Nozzle Changes
With a screwdriver, you can quickly change nozzles in the field without removing internals. One Stator for Any Nozzle
When changing nozzles, the self-adjusting stator automatically modifies flow to control rotation speed and optimize performance. Easy Arc Adjustments
Rapid-Adjust Technology allows you to handle arc adjustments with the turn of a screw, while MemoryArc lets you shift between full- and part-circle operation in seconds.

Specs

Radius

• Rain Bird 702 Series: 18.0 m to 23.5 m
• Rain Bird 752 Series: 5.8 m to 25.6 m

Flow Rate

• Rain Bird 702 Series: 1.06 to 2.70 l/s; (3.83 to 9.73 m³/h)
• Rain Bird 752 Series: 0.42 to 2.97 l/s; (1.51 to 10.68 m³/h)

Arc

• Rain Bird 702 Series: Full-circle, 360°
• Rain Bird 752 Series: Full-circle, 360°, Adjustable 30-345°

Models

• E: Electric
• EVIH: Electric Valve in Head
• IC: Integrated Control

Maximum Inlet Pressure

• 150 psi (10.3 bars)

Pressure Regulation Range

• 60 to 100 psi (4.1 to 6.9 bars)

Factory Pressure Settings

• Available in 70 and 80 psi (4.8 and 5.5 bar)

Dimensions

• Body Height: 30.5 cm
• Pop-Up Height to Mid-Nozzle: 6.6 cm
• Top Diameter: 15.9 cm

Maximum Stream Height

• Rain Bird 702/752 Series: Standard: 5.2 m, Wind Tolerant: 3.1 m
• Rain Bird 752 Series: Low Angle: 3.7 m

Nozzle Trajectory

• Rain Bird 702/752 Series: Standard: 25°, Wind Tolerant: 12°
• Rain Bird 752 Series: #18 & Low Angle Nozzle: 15°

Inlet Threads

• 32 mm ACME female thread

Rotation Time

• 180° in ≤ 90 seconds, 80 seconds nominally

Solenoid

• 24 VAC solenoid power requirement: 0.41 amp inrush current (9.8 VA)
• 60 cycle: 0.25 amp holding current (6.0 VA)
• 50 cycle: 0.32 amp holding current (7.7 VA)

Surge Resistance

• Up to 25KV standard on electric models with the GBS25 solenoid

Top-Serviceable Internal Components

• Yes

High & Low Flow Valves to Ensure Optimal Performance

• 752 Series Nozzles 18, 20, 22, 24, and 26 require a low-flow valve that comes preinstalled on rotors during manufacturing.
• 752 Series Nozzles 28, 32, 36, 40, 44, 48 and 50 require a high-flow valve that comes preinstalled on rotors during manufacturing.
