Hunter Pro Spray Pressure Regulated Pop up Sprinkler Bodies

Features:

• Application: Residential / Commercial
• Models: 100mm, 150mm, 300mm
• Measurement refers to the sprinkler pop-up height
• Inlet Connection: 15mm BSP Female thread
• Compatible with all female threaded nozzles
• Side inlet (SI) version available in 6″ and 12″.
• Warranty period: 5 years
• Co Moulded Wiper Seal – Its innovative design prevents debris from entering the seal when the riser retracts, reducing riser stick-ups
• Industry’s Strongest Spray Body
• Heavy Duty Spring – Positive retraction under any conditions
• Innovative Seal Design – The Pro-Spray can withstand more than one complete 360º turn and remain sealed at any pressure.
• Interchangeable components for easier servicing, retrofits, and upgrades

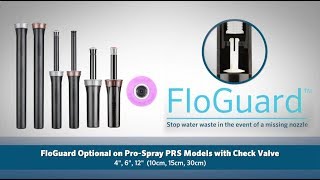

• FloGuard technology option eliminates water waste in the event of a missing nozzle
• CV = Check Valve

30 psi Pop Up

• Pressure-regulated to 2.1 bar; 210 kPa for optimal nozzle performance

40 psi Pop Up

• Pressure-regulated to 2.8 bar; 280 kPa for the MP Rotator

Overview

Hunter Pro-Spray sprinkler heads are engineered to ensure long-lasting, reliable performance in residential applications.

Measurement is for pop up height (how high the sprinkler pops above ground level); it is not the length of the body.

Pro Spray Pop up Sprinkler Bodies

Pro-Spray heads feature a durable construction that is second to none, an exclusive body cap design that does not leak even when loosened, and a reliable, easy to adjust two-piece ratchet. Pro-Sprays are compatible with Precision Distribution Control Adjustable Nozzles, Pro Fixed Nozzles, and MP Rotators.

All models also include a user-friendly pull-ring flush cap to keep debris and clogging to a minimum. The Hunter Pro-Spray sprinkler head is compatible with all industry-standard female nozzles offering a high degree of flexibility.

Inlet Connection: 15mm BSP Female thread

Recommended pressure range: 15 to 70 PSI

Note: This is just the sprinkler body, sprinkler nozzles sold separately
