G800 Series rotors are reliable and efficient mid-range performers that provide unsurpassed distribution with a wide range of flow and radius capabilities. They are available in an array of TTS and DIH configurations. Patented TTS technology allows for every serviceable element of the rotor to be accessed through the top. Mechanical and electrical, big and small, you can get to every component without disturbing the playing surface. That means there are no more digging and no more unsightly scars.
Features
- Full circle water lubricated gear-drive
- Exclusive PressurePort™ technology delivers uniform and consistent coverage
- Closed-case design helps prevent sticking riser and leaking seals
- Flexible performance with 6 nozzles to choose from
G880 |
G884 |
G885 |
G835 |
|
|---|---|---|---|---|
| FEATURES | ||||
| ACME Threaded Inlet Size | 1½" | 1½" | 1½" | 1½" |
| Radius (m) | 20.4 - 26.8 | 15 - 28 | 13.1 - 27.7 | 5.5 - 15.2 |
| Flow Rate (m3/hr) | 5.11 - 13.15 | 3.3 - 13.2 | 1.86 -13.06 | 0.43 - 2.91 |
| Flow Rate (l/min) | 85.2 - 219.2 | 54.6 - 220.6 | 31.0 - 217.7 | 7.2 - 48.5 |
| Recommended Pressure Range (bars) | 4.5 - 6.9 | 2.8 - 6.9 | 3.4 - 6.9 | 2.8 - 4.5 |
| Recommended Pressure Range (kPa) | 450 - 689 | 344 - 689 | 344 - 689 | 275 - 450 |
| Precipitation Rate (mm/hr, 360°) | 12.3 - 21.1 | 14.7 - 19.0 | 10.8 - 19.9 | 10.9 - 18.0 |
| Nozzle Trajectory | 25º | 22.5º & 15º | 22.5º & 15º | Multiple |
| Check Height (m., C.O.M. Models) | 8 m | 8 m | 8 m | 8 m |
| Nozzle Options | 6 | 19 | 21 | 8 |
| Component Exchange Warranty | 3 Years | 3 Years | 3 Years | 3 Years |
| Component Exchange Warranty with Matching HSJ Swing Joint Purchase | 5 Years | 5 Years | 5 Years | 5 Years |
| ADVANCED FEATURES | ||||
| Exclusive PressurePort™ Nozzle Technology |  |
|
|
|
| Part and Full-Circle in One Model | |
|
|
|
| Full-Circle Opposing Nozzles | |
|
||
| Yardage Marker Capable | |
|
|
|
| Check-O-Matic Models | |
|
|
|
| Electric Valve-In-Head Models | |
|
|
|
| Exclusive - DIH Decoder-In-Head Models | |
|
|
|

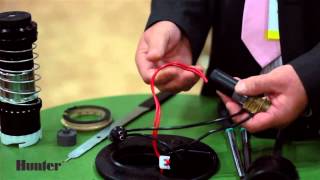

| Exclusive - TTS Total Top Serviceability | |
|
|
|
| Exclusive - Made in The USA | |
|
|
|
TTS G800 SERIES ADVANCED FEATURES
Hunter's revolutionary TTS (Total Top Servicing) design offers exclusive and unique features and benefits that are designed with serviceability and innovation in mind.
LARGE AND FLEXIBLE YARDAGE MARKER OPTIONS
Standard durable recessed area for placard markers
Optional raised marker for popular engraved and paint-filled markers.
EXCLUSIVE DIH CAPABILITY
Factory configured Decoder-In-Head (DIH) rotors are available for all 800 Series and 900 Series valve-in-head TTS rotors. All DIH rotors include Hunter's patented Total Top Programming technology. Whether on the workbench or after installation, the decoder station can be programmed without rotor dis-assembly.
G800 SERIES COLOR-CODED NOZZLES
All G870, G875 and G880 rotors have colour-coded nozzles for easy identification and, the nozzle numbers approximate the flow in gallons per minute.
