Areta MDP Series – Magnetic Driven Pump

$254.39$958.71



The MDP Magentic Drive Series pumps are designed and ideal for applications involving salt water as well as corrosive liquids

Details Code Price Quantity
5 Watts - 230v - 0.19 Amps - max head 1.8m - max flow 12 L/min 220-MDP010 $254.39
 incl GST
20 Watts - 230v - 0.24 Amps - max head 3.5m - max flow 27 L/min 220-MDP020 $358.82
 incl GST
65 Watts - 230v - 0.52 Amps - max head 4.5m - max flow 43 L/min 220-MDP040 $647.66
 incl GST
150 Watts - 230v - 1.3 Amps - max head 6.5m - max flow 80 L/min 220-MDP070 $820.95
 incl GST
260 Watts - 230v - 1.6 Amps - max head 8.5m - max flow 110 L/min 220-MDP100 $958.71
 incl GST
View Full Product Page

SKU: 220-MDP Categories: ,

Overview

The MDP Magentic Drive Series pumps are designed and ideal for applications involving salt water as well as corrosive liquids

The MDP series has full polypropylene wet end with magnet driven impeller for reliable, long service life in difficult applications or for pumping corrosive liquids where normal mechanical seal or shaft would be damaged.
Max temp 80 degrees.

*Please check chemical compatibility with polypropylene before usage.

*1 Year Warranty

Applications:

  • Aquaculture.
  • Horticulture.
  • Air conditioning.
  • Refrigeration.
  • Dosing.



Part No. Watts (P2) Volts Hz Amps
220-MDP010 5 (15) 230 50/60 0.19
220-MDP020 20 (45) 230 50/60 0.24
220-MDP040 65 (95) 230 50/60 0.52
220-MDP070 150 (210) 230 50/60 1.3
220-MDP100 260 (365) 230 50/60 1.6

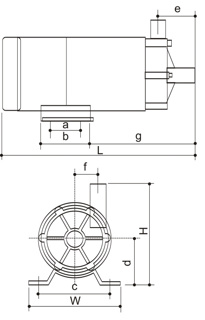

Areta MDP Series pump dims
Areta MDP pump dims & specs

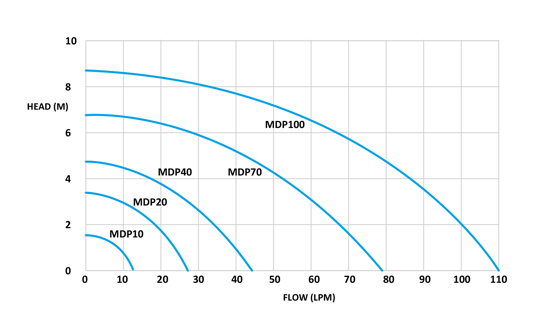

Areta MDP Series flow chart
