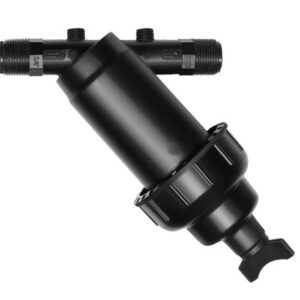

50mm Amiad Tagline Super Filter – Disc or Screen

Price range: $455.71 through $545.50

  • Easy maintenance: The filter elements can easily be extracted from the filter housing for rinsing.
  • High quality, low pressure loss, no tools required.
  • Wide range of flow rates, multiple filtration degrees, corrosion resistant, various applications.
Details Code Price Quantity
130-micron/Screen TL50TS-130S $455.71
 incl GST
130-micron/Disc TL50TS-130D $545.50
 incl GST
200-micron/Screen TL50TS-200S $455.71
 incl GST
200-micron/Disc TL50TS-200D $545.50
 incl GST
300-micron/Screen TL50TS-300S $455.71
 incl GST
View Full Product Page

SKU: TL50TS Categories: , , , Tag:

Features

  • Available with 130µ, 180µ and 250µ Disc Filters or with 130µ, 200µ and 300µ Screen Filters
  • Easy maintenance: The filter elements can easily be extracted from the filter housing for rinsing.
  • High quality, low pressure loss, no tools required.
  • Wide range of flow rates, multiple filtration degrees, corrosion resistant, various applications.

Technical Specifications

  • Maximum Flow Rate: 6.94 L/s
  • Inlet / Outlet Diameter: 50mm / 2"
  • Maximum Working Pressure: 8 bar / 120 psi
  • Maximum Working Temperature: 60°C
  • Filter Area: 700 cm²
amiad-filter-colour-guide-2
  • 20mflushvalve both

    20mm Plastic Filter Flush Valves

    Price range: $5.89 through $18.77     Select options This product has multiple variants. The options may be chosen on the product page
  • 50mm T Filter

    Amiad 50mm T Filters SPARE PARTS List

    Price range: $7.36 through $361.48     Select options This product has multiple variants. The options may be chosen on the product page
  • disc element img

    Disc elements for Amiad 50mm T Super and 80mm T Filters

    Price range: $400.89 through $457.93     Select options This product has multiple variants. The options may be chosen on the product page
  • hansen female straight coupling

    Hansen Female Straight Coupling

    Price range: $5.82 through $21.18     Select options This product has multiple variants. The options may be chosen on the product page
  • hansen hex socket

    Hansen Hex Socket

    Price range: $2.01 through $59.82     Select options This product has multiple variants. The options may be chosen on the product page
  • hansen md female threaded coupling

    Hansen Medium Density Female Threaded Coupling

    Price range: $6.07 through $142.54     Select options This product has multiple variants. The options may be chosen on the product page
  • screens 50ts 80 t

    Screens for Amiad 50mm T Super and 80mm T filters

    Price range: $400.89 through $457.93     Select options This product has multiple variants. The options may be chosen on the product page


Amiad Screen Filter Brochure




Filter Size  Code (Link) Length Diameter Filter type Fits (Link)
20mm FS20130S 126mm 35mm Screen TL20 - PF20PF - PF20P - PF20A - TL25  - PF25PF
 25mm FS25130S 126mm 60mm Screen 25YS - 40YC - PF40YC-S
40mm FS40130S 255mm 60mm Screen PF40YS - TL40YS
50mm FS50130S 248mm 110mm Screen PF50TC - TL50TC - PF50T
80mm FS80130S 373mm 110mm Screen TL50TS - PF50TS - PF80TF -  TL80T
80mm FS80M130S 500mm 110mm Screen SF80F
100mm FS100130S 500mm 110mm Screen SF100S
50mm FS50500SP 250mm 110mm Stainless Steel Perforated screen  PF50TC - TL50TC - SF50T
80mm FS80500SP 370mm 110mm Stainless Steel Perforated screen TL50TS - PF50TS - PF80TF -  TL80T - PF80TT -
100mm FS100500SP 500mm 110mm Stainless Steel Perforated screen  SF100S

Size  Code (Link) Length Diameter Filter type Fits (Link)
25mm FS25D 130mm 60mm Disc  PF25YS - PF40YC-S - PF25YS-D
40mm FS40D 130mm 60mm Disc TL40YS -  PF40YS
50mm FS50D 260mm 113mm Disc PF50T - TL50TC
80mm FS80TDSD 260mm 130mm Disc 80TDS
80mm FS80TD 385mm 130mm Disc PF50 - TL80T - PF80T - PF80TLF
