Features:
- Suits 4mm Riser Tube
- 45° downspray reduces the effect of wind.
- Gentle spray minimizes damage to delicate plant foliage.
- Galvanized wire stake assembly with 36” tubing.
- Three color coded frames to identify flow rates.
- “Quick” thread for easy insertion into tubing.
- Shut-Off Clip to stop flow.
- UV stabilized for long life.
| Color and Orifice Size (mm) | Pressure (BAR (psi)) | Flow (Lph) | Diameter (mm) |
|---|---|---|---|
| Black (0.8mm) | 0.69 (10) | 18.2 | 610 |
| 1.03 (15) | 22.7 | 610 | |
| 1.34 (20) | 27.3 | 508 | |
| Brown (0.9mm) | 0.69 (10) | 22.7 | 610 |
| 1.03 (15) | 28.39 | 508 | |
| 1.34 (20) | 32.55 | 508 | |
| Blue (1.0mm) | 0.69 (10) | 26.50 | 610 |
| 1.03 (15) | 33.7 | 508 | |
| 1.34 (20) | 39.8 | 508 |
Overview

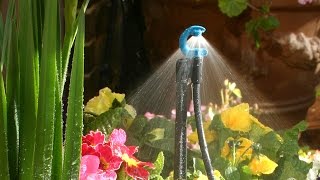

The C-Frame Downspray is a 360° spray jet that distributes water evenly across the wetted surface area. Suits 4mm Riser Tubing.
Applications:
- Nurseries, tree lots, potted plants, home and landscaped gardens.
